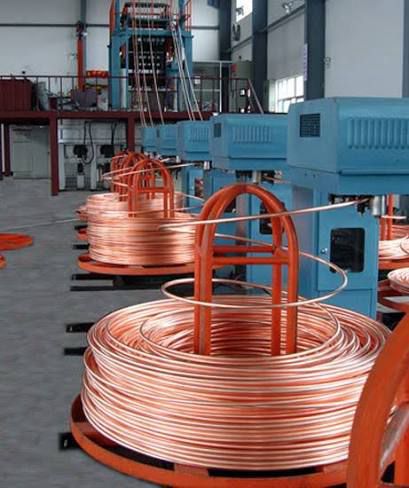

Copper rod continuous casting machine

Middle East Customer satisfied oxygen-free copper wire making machine copper rod castercopper rod caster
1. Energy-saving furnace is used for the upcasting line, which is having a larger power for single inductor, better melting effect, and a longer life.
2. The gapless connecting expansion sleeve is used for the traction device, the PLC is used to control the servo motor correctly, and to assure that each order from the PLC is correct and accurate.
3. High accuracy and low backlash planetary reducer is used to make the freezing time more accurate, thus to increase the crystallzing quality.
4. The paperless recorder is used and is connected to the manager's computer. All the temperature records within one month can be checked, through which the controlling of the furnace temperature can be more effective and the rod quality can be increased, (chose when the buyer need)
7. The thickness of the furnace is increased, e.g., the furnace for 5000 type is 1.6 meters which is having a better heating preservation effect.
8. Quick lifting device is used for installing and changing the crystallizer, it can be finished within 10 seconds. When water or power supply stops, the crystallizer can be lifted quickly and leave the copper liquid.
9. The copper rod upcasting machine includes line frequency induction furnace, continuous casting machine, rack of directive wheels, tension device, two-stroke coiler, cooling system, electric system,feeding system and measure temperature system and so on.
